Belden 82760 18 AWG Multi-Conductor Single Pair Plenum Shielded 300V

SKU BEL82760

$

3.630000

3.630000

/ft
How will you purchase this wire?
3.630000 3.630000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 82760 18 AWG Multi-Conductor Single Pair Plenum Shielded 300V

Color Length (ft.) Price
Natural

Length (ft.)

$3.63
add Add a length
Grouped product items
Color Length (ft.)
Natural Length 500 ft.
$1,815.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • O.D. (Inches)

    0.15 in.

  • Ampacity

    5.4

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

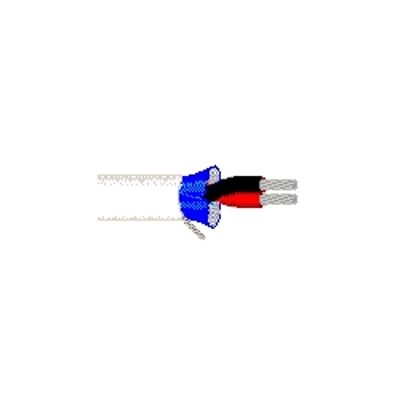

Belden 82760 18 AWG stranded (19x30) TC conductors, plenum, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, Flamarrest® jacket.

Spec Sheet

Belden 8760 Spec SheetView Spec Sheet for Complete Details

Specifications
Conductor Size: 18AWG
Conductor Material: Tinned Copper
Outside Diameter: .15 inches
Jacket Color: Natural
Jacket Material: Flamarrest®  - Low Smoke PVC
