Belden 82241 RG-59/U 23 Solid AWG, Bare Copper-Covered Steel Conductor Coaxial Cable, Plenum 75 Ohm

SKU BEL82241
How will you purchase this wire?
3.180000 3.180000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 82241 RG-59/U 23 Solid AWG, Bare Copper-Covered Steel Conductor Coaxial Cable, Plenum 75 Ohm

Color Length (ft.) Price
Natural

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Natural Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

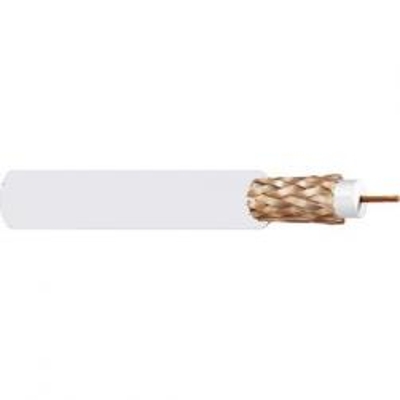

Belden 82241 - 23 AWG Solid .023" bare copper-covered steel conductor, plenum, FEP insulation, bare copper braid shield (95% coverage), Flamarrest® jacket.

Belden 9116 Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 23 AWG
Stranding: Solid
Conductor Material: BCCS - Bare Copper Covered Steel
Outside Diameter: 0.190 in
Jacket Color: Natural
Jacket Material: LS PVC (Low Smoke Polyvinyl Chloride)

*Data provided on this page is subject to change based on different manufacturers variances.
