Belden 8205 20 AWG 1 Pair Multi-Conductor - High-Conductivity Copper Speaker Cable Twisted Jacketed Con
$1.21 /ft.
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

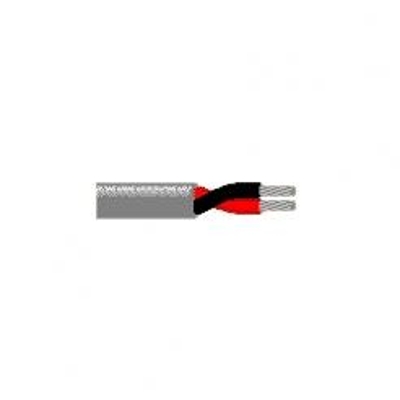

Belden 8205 - 20 AWG stranded (7x28) tinned copper conductors, PVC insulation, twisted pairs, PVC jacket
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Specifications | |
| Conductor Size AWG: | 20AWG |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .180 inches |
| Jacket Color: | Chrome |
| Jacket Material: | PVC (Polyvinyl Chloride) |
*Data provided on this page is subject to change based on different manufacturers variances.
| Stocked | Yes |
|---|---|
| Wire Size | 20 AWG |
| # of Conductors | 2 Conductors |
| # of Pairs | 1 Pair |
| O.D. (Inches) | 0.18 |
| Ampacity | 3.7 |
| Manufacture | Belden |
