Belden 7962A, Cat5e, 22 AWG, 4c, F/Ftp, Profinet, Datatuff Type C Twisted Cable

SKU BEL7962A

$

6.050000

6.050000

/ft
How will you purchase this wire?
6.050000 6.050000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 7962A, Cat5e, 22 AWG, 4c, F/Ftp, Profinet, Datatuff Type C Twisted Cable

Color Length (ft.) Price
Green

Length (ft.)

$6.05
add Add a length
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    4 Conductors

  • O.D. (Inches)

    0.276

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

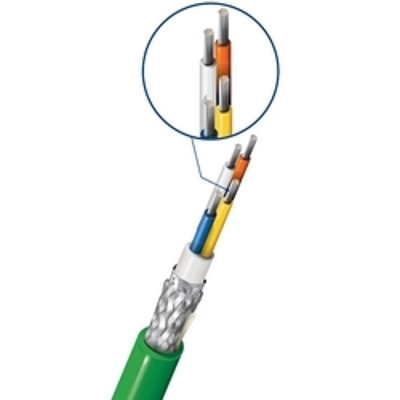

Belden 7962A - 22 AWG Symmetric quad stranded (19x34) tinned copper conductors, polyolefin insulation, FRPE bedding, industrial grade sunlight- and oil-resistant PVC jacket, rip cord. Sequential marking at two foot intervals. PROFINET Type B cable, 5 Million Flex Quad Cables

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 7962A - Specifications
Size:                                              22 AWG
Conductors: 4
Conductor Material:                      TC - Tinned Copper
Stranding: 19x34
Outside Diameter: 0.276 in.
Shield Type: F/FTP - Foiled/Foiled Twisted Pair
Jacket Color: Green
Jacket Material: Industrial Grade TPE - Thermo Plastic Elestomer
