    $2,038.67 /sp.

    In Stock

    Belden 7960A, Cat5e, 22 AWG, 4c, SF/Utp, Profinet, Datatuff Type A Twisted Cable

    Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    1000 ft.
    Add a length

     Free Shipping on all orders over $1000

    Belden 7960A, Cat5e, 22 AWG, 4c, SF/Utp, Profinet, Datatuff Type A Twisted Cable

    SKU
    BEL7960A
    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description

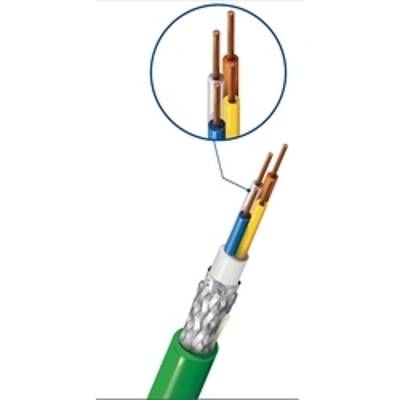

    Belden 7960A - 22 AWG Symmetric quad solid bare copper conductors, polyolefin insulation, FRPE bedding, industrial grade sunlight- and oil-resistant PVC jacket, rip cord. Sequential marking at two foot intervals. PROFINET Type A cable

    Spec Sheet

    Belden 9841 Spec SheetView Spec Sheet for Complete Details

    Belden 7960A - Specifications
    Size:                                              22 AWG
    Conductors: 4
    Conductor Material:                      Solid BC - Solid Bare Copper
    Outside Diameter: 0.268 in.
    Shield Type: SF/UTP - Screened & Foiled/Unshielded Twisted Pair
    Jacket Color: Green
    Jacket Material: Industrial Grade PVC - Polyvinyl Chloride
    More Information
    StockedYes
    Wire Size22 AWG
    # of Conductors4 Conductors
    O.D. (Inches)0.268
    ManufactureBelden
