Belden 7938A, DataTuff, Cat5e, 24 AWG, 4 Bonded-Pairs, Stranded Bare Copper, PO/TPE/TPE, Foil+TC Braid Shield

SKU BEL7938A
How will you purchase this wire?
9.060000 9.060000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 7938A, DataTuff, Cat5e, 24 AWG, 4 Bonded-Pairs, Stranded Bare Copper, PO/TPE/TPE, Foil+TC Braid Shield

Color Length (ft.) Price
Black

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    24 AWG

  • # of Conductors

    8 Conductors

  • # of Pairs

    4 Pair

  • O.D. (Inches)

    0.342

  • Manufacture

    Belden

  • Shield Type

    Foil + Braid(s)

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

                                 ***For larger put-ups, please call for availability***

General Description

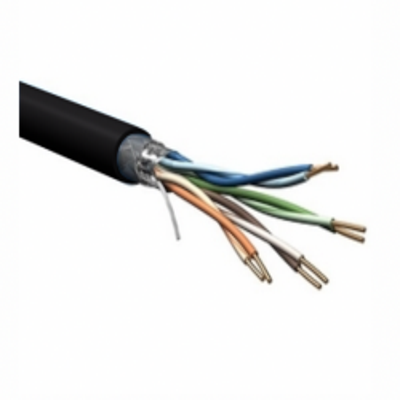

Belden 7938A - 4 Cat 5e 24 AWG Bonded Pairs stranded (7x32) bare copper alloy conductors, polyolefin insulation, TPE inner jacket, Beldfoil® shield (100% coverage) plus tinned copper braid (85% coverage), weld spatter resistant TPE jacket, 10 million flex life cycles.

Suitable Applications:
Industrial Ethernet Cable, Harsh Environments, Robotic Applications, Flexible Applications, 100MHz Category 5e, Industrial Patch Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU, Digital Video, RS-422, CMX - Outdoor, RJ-45 Compatible

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details

Belden 7938A - Specifications
Conductor Size AWG: 24AWG
Number of Pairs 4
Conductor Material: 7 x 32 Stranded Bare Copper
Outside Diameter: 0.342 in.
Jacket Color: Black
Jacket Material: Industrial Grade TPE - Thermoplastic Elastomer
