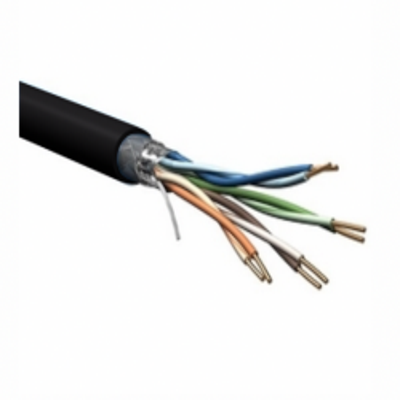

Belden 7929A, DataTuff, 24 AWG, 4 Bonded-Pairs, Cat 5e Solid, Bare Copper, Polyolefin Insulation, PVC Jacket
$
3.040000
3.040000
/ft
FREE SHIPPING ON ORDERS OVER $1000
Product Details
Learn everything you want to know about this product to make an informed purchase
Specifications
-
Wire Size
24 AWG
-
# of Conductors
8 Conductors
-
# of Pairs
4 Pair
-
O.D. (Inches)
0.265
-
Manufacture
Belden
Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information
General Description
Belden 7929A - 24 AWG,4 Bonded-Pairs, Cat 5e solid bare copper conductors, polyolefin insulation, overall Beldfoil® shield (100% coverage), industrial grade oil- and UV-resistant PVC jacket.
Suitable Applications:
Industrial Ethernet Cable, Harsh Environments, 200MHz Category 5e, Industrial Ethernet, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments, CMX - Outdoor, RJ-45 Compatible
Spec Sheet
View Spec Sheet for Complete Details
| Belden 7929A - Specifications | |
| Conductor Size AWG: | 24AWG |
| Number of Pairs | 4 |
| Conductor Material: | Solid Bare Copper |
| Outside Diameter: | 0.265 in |
| Jacket Color: | Black |
| Jacket Material: | Industrial Grade PVC (Polyvinyl Chloride) |
