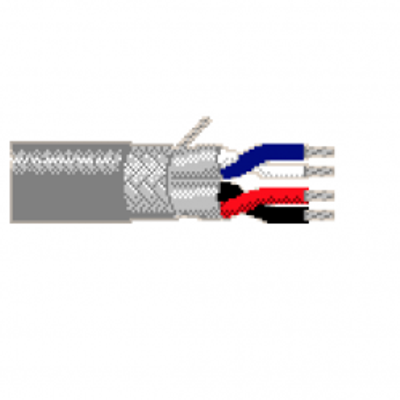

Belden 7896A - 16/1P + 18/1P Multi-Conductor Cable - DeviceBus for ODVA DeviceNet
$9.16 /ft.
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 7896A - 16 and 18 AWG stranded tinned copper conductors, PVC/Nylon insulation (power), F-R Polypropylene insulation (data), individually foil shielded (100% coverage) plus an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 7896A - Specifications | |
| Size: | 16 & 18 AWG |
| Conductors: | 4 |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .525 inches |
| Jacket Color: | Chrome |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Stocked | Yes |
|---|---|
| Wire Size | 18 AWG |
| # of Conductors | 4 Conductors |
| O.D. (Inches) | 0.525 |
| Ampacity | 8 |
| Manufacture | Belden |
