    • Belden 7804WB, 24 AWG + 20 AWG, + 2 Fibers, SMPTE 311M, Composite Cable, Waterblock
    $3.34 /ft.

    In Stock

    Belden 7804WB, 24 AWG + 20 AWG, + 2 Fibers, SMPTE 311M, Composite Cable, Waterblock

    Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Add a length

     Free Shipping on all orders over $1000

    Belden 7804WB, 24 AWG + 20 AWG, + 2 Fibers, SMPTE 311M, Composite Cable, Waterblock

    SKU
    BEL7804WB-FT

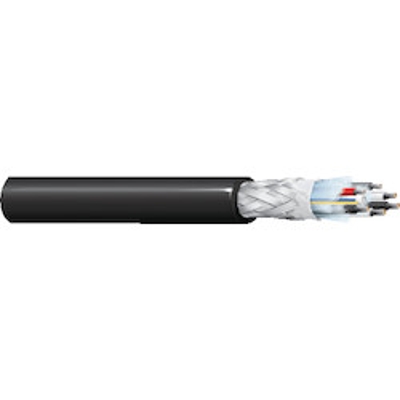

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 7804WB - Industry Standard SMPTE 311M Cable Waterblocked, 4 power conductors, SM fibers w/24 and 20 AWG stranded (7x32 and 19x32) TC conductors, PVC insulation, TC braid shield (95% coverage), Belflex® jacket.


    Suitable Applications:  SMPTE 311M Camera Cable


    Spec Sheet

    Belden 9116 Spec SheetView Spec Sheet for Complete Details

    Belden 7804WB - Specifications
    Size:                         24 AWG + 20 AWG
    Conductors: 6 + 2 Fibers
    Strandings: 24 AWG (7x32),  20 AWG (19x32)
    Conductor Material:  Tinned Copper
    Outside Diameter: .362 inches
    Jacket Color: Black
    Jacket Material: PE - Polyethylene
    Weight: .085 lbs/ft
    More Information
    StockedYes
    ManufactureBelden
