    Belden 7732A, RG-11/U, 14 AWG, 75 Ohm, PVDF Jacket, Low Loss Serial Digital Coax Cable

    Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Qty:
    Add a length

     Free Shipping on all orders over $1000

    Belden 7732A, RG-11/U, 14 AWG, 75 Ohm, PVDF Jacket, Low Loss Serial Digital Coax Cable

    SKU
    BEL7732A-FT

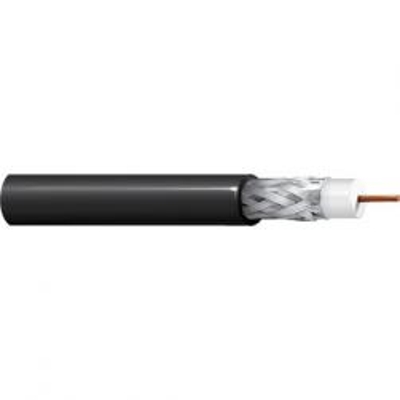

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 7732A - RG-11/U type, 14 AWG solid .064" bare copper conductor, plenum, foam FEP insulation, Duofoil® + tinned copper braid shield (95% coverage), fluorocopolymer jacket.

    Spec Sheet

    Belden 9116 Spec SheetView Spec Sheet for Complete Details

    Belden 7732A - Specifications
    Size:                         14 AWG
    Conductors: 1
    Conductor Material:  SBCC - Solid Bare Copper Conductor
    Outside Diameter: .348 inches
    Impedance: 75 OHM
    Jacket Color: Black
    Jacket Material: PVDF - Fluorocopolymer
    Shield Type: Both, Braid Over Foil 95%
    More Information
    StockedYes
    Wire Size30 AWG
    ManufactureBelden
