Belden 6545FE 22 AWG 6 Pair, Overall Shielded Plenum, Security and Audio Cable

SKU BEL6545FE

$

0.752000

0.752000

/ft
How will you purchase this wire?
0.752000 0.752000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 6545FE 22 AWG 6 Pair, Overall Shielded Plenum, Security and Audio Cable

Grouped product items
Color Length (ft.)
Natural Length 1000 ft.
$752.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    12 Conductors

  • # of Pairs

    6 Pair

  • O.D. (Inches)

    0.268

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

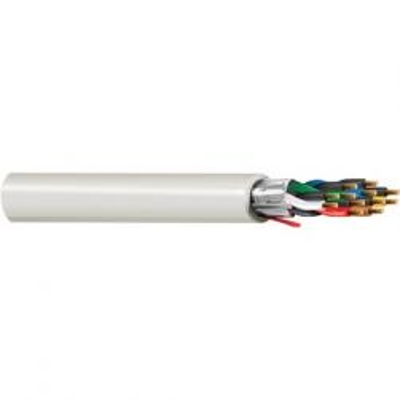

Belden 6545FE - 22 AWG bare copper conductors, Flamarrest® insulation, twisted into pairs, multiple pairs cabled together, overall Beldfoil® shield tape (foil side out) w/drain wire, Flamarrest® jacket with ripcord. Sequential footage marking every two feet.

Suitable Applications
Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Controls

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details

Belden 6545FE - Specifications
Size AWG: 22 AWG
Pairs: 6
Conductor Material: Bare Copper
Outside Diameter: .268 inches
Jacket Color: Natural
Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
Weight: .005 lbs/ft



See Less
