Belden 6541PA, 22 AWG 2 Pair, Individually Shielded Plenum, Security and Audio Cable

SKU BEL6541PA

$

0.874200

0.874200

/ft
How will you purchase this wire?
0.874200 0.874200
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 6541PA, 22 AWG 2 Pair, Individually Shielded Plenum, Security and Audio Cable

Grouped product items
Color Length (ft.)
Gray Length 1000 ft.
$874.20
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    4 Conductors

  • # of Pairs

    2 Pair

  • O.D. (Inches)

    0.214

  • Manufacture

    Belden

  • Shielded

    Yes

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

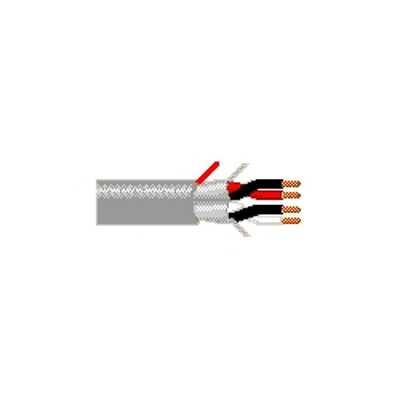

Belden 6541PA - 22 AWG BC conductors, FEP insulation, conductors twisted into pairs and individually shielded w/Beldfoil® tape (alum side facing in). Each pair has a 24 AWG TC drain wire, pairs cabled together, Fluorocopolymer jacket, ripcord. Sequential footage marking every two feet.

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details

Belden 6541PA - Specifications
Size AWG: 22 AWG
Pairs: 2
Conductor Material: Bare Copper
Outside Diameter: .214 inches
Jacket Color: Gray
Jacket Material: PVDF - Fluorocopolymer
Weight: .026 lbs/ft
