    Belden 643948, 20AWG, RG-59/U, Plenum, Coax - CCTV Applications Cable

    Contact us for pricing
    Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Add a length

     Free Shipping on all orders over $1000

    SKU
    BEL643948-FT

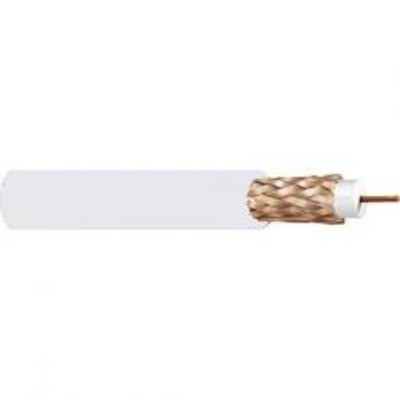

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 643948 - 20 AWG bare copper conductor, foam FEP insulation, bare copper braid shield, Flamarrest® jacket, sequential footage marking every two feet.

    Spec Sheet

    Belden 9841 Spec SheetView Spec Sheet for Complete Details

    Belden 643948 - Specifications
    Size:                                              20 AWG
    Conductors: 1
    Conductor Material:                      SBCC - Solid Bare Copper Conductor
    Outside Diameter: 0.193 in.
    Impedance: 75 OHM
    Jacket Color: Natural
    Jacket Material: LS PVC - Low Smoke Polyvinyl Chloride
    Shield Type: Braid Bare Copper 95%
    More Information
    StockedYes
    Wire Size30 AWG
    ManufactureBelden
