Belden 6342FE 18 AWG 3-Pair Multi-Conductor - Commercial Applications

Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
500 ft.
1000ft
Add a length

 Free Shipping on all orders over $1000

Belden 6342FE 18 AWG 3-Pair Multi-Conductor - Commercial Applications

SKU
BEL6342FE

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description

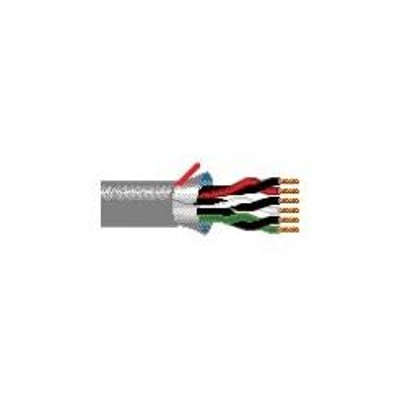

Belden 6342FE -  18 AWG bare copper conductors, Flamarrest® insulation, twisted into pairs, multiple pairs cabled together, overall Beldfoil® shield tape (foil side out) w/drain wire, Flamarrest® jacket with ripcord. Sequential footage marking every two feet.

Suitable Applications
Security Systems, Intercom/PA Systems, Sound/Audio Systems, Power Limited Systems

Spec Sheet

Belden 8770 Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 18AWG
Conductor Material: Bare Copper
Outside Diameter: .282 inches
Jacket Color: Natural
Jacket Material: PVC (Polyvinyl Chloride)

*Data provided on this page is subject to change based on different manufacturers variances.

More Information
Wire Size18 AWG
# of Conductors6 Conductors
# of Pairs3 Pair
O.D. (Inches)0.282
Ampacity3.5
ManufactureBelden
