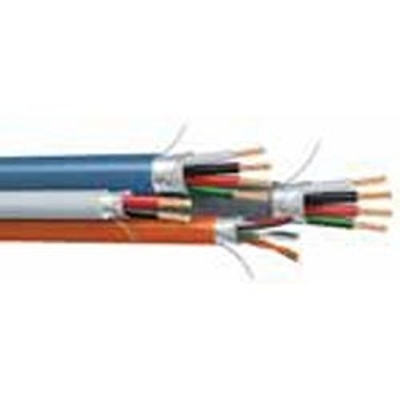

Belden 558AFS 18-4C + 22-3P + 22-2C + 22-4C Riser Access Control Cable, Banana Peel Cable
In Stock
SKU
BEL558AFS-FT
$1.44 /ft.
Belden 558AFS 18-4C, 22-3P, 22-2C, 22-4C Riser Access Control Cable, Banana Peel Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 558AFS - Access Control Cable, Riser-CMR, 3-22 AWG pairs, 4-18 AWG conductors, 4-22 AWG conductors, 2-22 AWG conductors, All conductors stranded bare copper with polyolefin insulation, Each component has overall Beldfoil® shield and PVC jacket, Banana Peel® No overall jacket
Spec Sheet
View Spec Sheet for Complete Details
| Belden 558AFS - Specifications | |
| Size: | 18-4C, 22-3P, 22-2C, 22-4C |
| Conductors: | 4C + 3P + 2C + 4C |
| Conductor Material: | Tinned Copper |
| Outside Diameter: | .448 inches |
| Jacket Color: | None |
| Jacket Material: | LS PVC - Low Smoke Polyvinyl Chloride |
| Stocked | Yes |
|---|---|
| Wire Size | 18 AWG |
| O.D. (Inches) | 0.448 |
| Manufacture | Belden |
