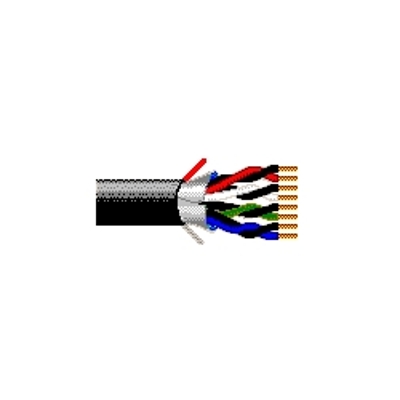

Belden 5545FE 22 AWG 6 Pair, CMR Riser Security, Audio Cable, Shielded

SKU BEL5545FE

$

0.526780

0.526780

/ft
How will you purchase this wire?
0.526780 0.526780
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 5545FE 22 AWG 6 Pair, CMR Riser Security, Audio Cable, Shielded

Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$263.39
Gray Length 1000 ft.
$526.78
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    12 Conductors

  • # of Pairs

    6 Pair

  • O.D. (Inches)

    0.253

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description
Belden 5545FE - 22 AWG bare copper conductors, PP insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil® shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet.

Applications
- Commercial Applications

Spec Sheet

Belden 5200UE Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 22 AWG
Pairs: 6
Stranding: 7x30
Conductor Material: Bare Copper
Outside Diameter: .253 in
Jacket Color: Gray
Jacket Material: PVC (Polyvinyl Chloride)
Weight: .043 lbs/ft
