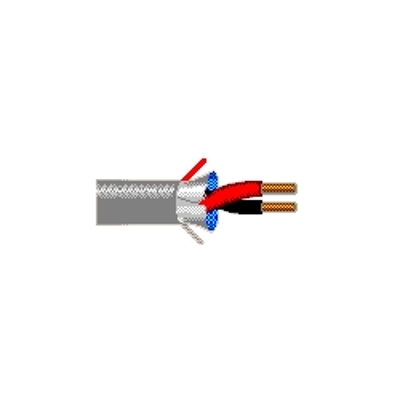

Belden 5520FE 22 AWG 2 Conductor, CMR Riser Security, Audio Cable, Shielded

SKU BEL5520FE

$

0.160000

0.160000

/ft
How will you purchase this wire?
0.160000 0.160000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 5520FE 22 AWG 2 Conductor, CMR Riser Security, Audio Cable, Shielded

Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$80.00
Gray Length 1000 ft.
$160.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.118

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description
Belden 5520FE - 22 AWG bare copper conductors, PP insulation, conductors cabled, Beldfoil® shield tape (foil side out) with drain wire, PVC jacket with ripcord, sequential footage marking every two feet.

Applications
- Intercom/PA Systems
- Sound/Audio Systems

Spec Sheet

Belden 5200UE Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 22 AWG
Conductors: 2
Conductor Material: Solid Bare Copper
Outside Diameter: .118 in
Jacket Color: Gray
Jacket Material: PVC (Polyvinyl Chloride)
Weight: .01 lbs/ft
