Belden 5502FE 22 AWG 4 Conductor Foil Shield CMR Riser Security Cable

SKU BEL5502FE

$

0.240000

0.240000

/ft
How will you purchase this wire?
0.240000 0.240000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

500 1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 5502FE 22 AWG 4 Conductor Foil Shield CMR Riser Security Cable

Grouped product items
Color Length (ft.)
Gray Length 500 ft.
$120.00
Gray Length 1000 ft.
$240.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    4 Conductors

  • O.D. (Inches)

    0.139

  • Ampacity

    2.2

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

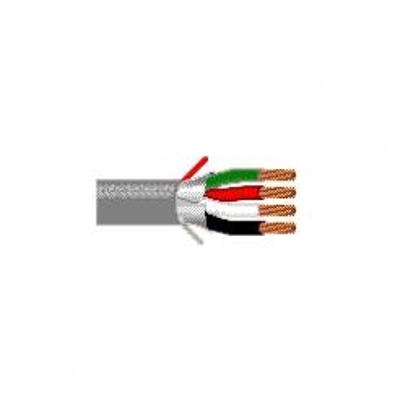

Belden 5502FE - 22 AWG Security & Alarm, Riser-CMR Cable. Bare copper conductors, PVC insulation, cabled, Beldfoil® shield tape (foil side out) with drain wire, Gray PVC jacket with rip cord. Sequential footage marking every two feet.

Applications
- Security Systems
- Intercom/PA Systems
- Sound/Audio Systems
- Power-Limited Controls

Spec Sheet

Belden 5500FE Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 22 AWG
Conductor Material: Bare Copper
Outside Diameter: .139 in
Jacket Color: Gray
Jacket Material: PVC (Polyvinyl Chloride)



See Less
