Belden 5500F1 22 AWG 2 Conductor Foil Shield Water-Blocked for Use in Underground Ducts

SKU BEL5500F1
How will you purchase this wire?
0.145000 0.145000
truck FREE SHIPPING ON ORDERS OVER $1000

Please Select Color(s)

Multiple colors can be selected

....

Multiple lengths can be selected

1000
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 5500F1 22 AWG 2 Conductor Foil Shield Water-Blocked for Use in Underground Ducts

Grouped product items
Color Length (ft.)
Gray Length 1000 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    22 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.197 x 0.298

  • Ampacity

    2.8

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

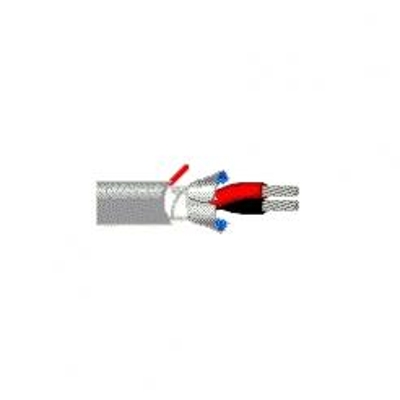

Belden 5500F1 - 22 AWG tinned copper conductors, PVC insulation, cabled with overall water-blocking tape, Black PVC jacket with rip cord. Sequential footage marking every two feet.

Applications
- Security Systems
- Intercom/PA Systems
- Sound/Audio Systems
- Power-Limited Controls
- Indoor or Outdoor Use

Spec Sheet

Belden 5300FE Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 22 AWG
Conductor Material: Tinned Copper
Outside Diameter: .196 in
Stranding: 7x30
Jacket Color: Gray or Black
Jacket Material: PVC (Polyvinyl Chloride)



See Less
