Belden 549945 RG59/U Coaxial Cable 20 AWG Copper w/Siamese 18/2C 75 Ohm

SKU BEL549945

$

0.480000

0.480000

/ft
How will you purchase this wire?
0.480000 0.480000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 549945 RG59/U Coaxial Cable 20 AWG Copper w/Siamese 18/2C 75 Ohm

Color Length (ft.) Price
Black

Length (ft.)

$0.48
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$240.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.232 x 0.450 in.

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

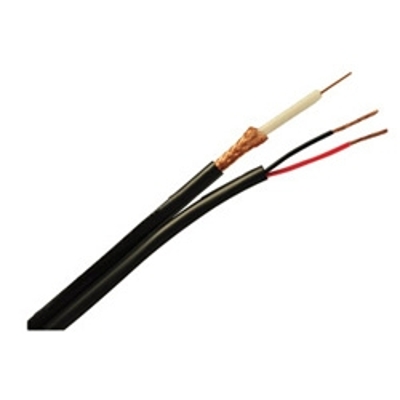

Belden 549945 - PTZ (CCTV+Power/Audio) Cable, Rated-CMG, 1-RG59 20 AWG solid bare copper with foam polyolefin, 95% bare copper braid, 1-18 AWG stranded bare copper pair with polyolefin insulation, Siamese with PVC jacket.

Spec Sheet

Belden 549945 Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 20 AWG
Conductor Material: Bare Copper
Outside Diameter: 0.232 x 0.450 in
Jacket Color: Various
Jacket Material: PVC (Polyvinyl Chloride)

*Data provided on this page is subject to change based on different manufacturers variances.
