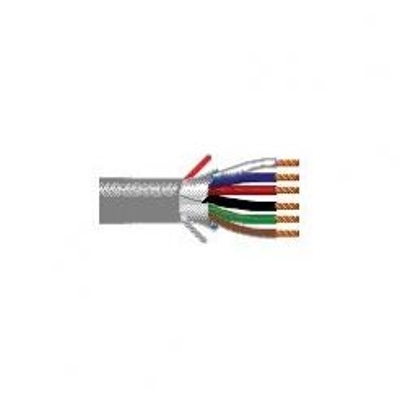

Belden 5304FE 18 AWG 6 Conductor Shielded CMR Riser Security Cable

SKU
BEL5304FE

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
Belden 5304FE - 18 AWG Security & Alarm, Riser-CMR Cable. Bare copper conductors, PVC insulation, cabled, Beldfoil® shield tape (foil side out) with drain wire, Gray PVC jacket with rip cord. Sequential footage marking every two feet.

Applications
- Security Systems
- Intercom/PA Systems
- Sound/Audio Systems
- Power-Limited Controls

Spec Sheet

Belden 5200UE Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications
Conductor Size AWG: 18AWG
Conductor Material: Bare Copper
Outside Diameter: .215in
Jacket Color: Gray
Jacket Material: PVC (Polyvinyl Chloride)



More Information
StockedYes
Wire Size18 AWG
# of Conductors6 Conductors
O.D. (Inches)0.215
Ampacity 3.5
ManufactureBelden
Belden_5402FE (90.96 kB)
