    Belden 513945, RG-11/U, 14 AWG, 75 Ohm, Bare Copper Conductor, Surveillance and CCTV Applications, Coax Cable

    Min: 25 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    Add a length

     Free Shipping on all orders over $1000

    Belden 513945, RG-11/U, 14 AWG, 75 Ohm, Bare Copper Conductor, Surveillance and CCTV Applications, Coax Cable

    SKU
    BEL513945-FT
    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description

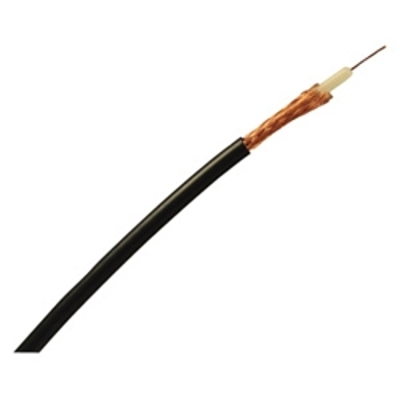

    Belden 513945 - 14 AWG bare copper conductor, foam polyethylene insulation, bare copper braid shield, sequential footage marking every two feet.

    Spec Sheet

    Belden 9841 Spec SheetView Spec Sheet for Complete Details

    Belden 513945 - Specifications
    Size:                                              14 AWG
    Conductors: 1
    Conductor Material:                      SBCC - Solid Bare Copper Conductor
    Outside Diameter: 0.405 in.
    Impedance: 75 OHM
    Jacket Color: Black
    Jacket Material: PVC - Polyvinyl Chloride
    Shield Type: Bare Copper Braid 95%
    More Information
    StockedYes
    ManufactureBelden
    ApplicationsSurveillance CCTV, CATV, MATV
