    Belden 5100FL 14 AWG 2 Conductor, Stranded, Shielded FPLR Fire Alarm Cable

    Min: 1 ft., Max: 10000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
    1,000 ft.
    Add a length

     Free Shipping on all orders over $1000

    Belden 5100FL 14 AWG 2 Conductor, Stranded, Shielded FPLR Fire Alarm Cable

    SKU
    BEL5100FL

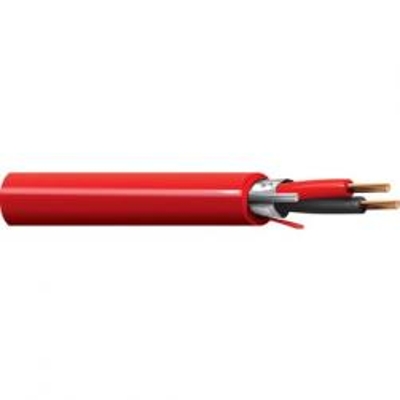

    main product photo

    Product Details

    Learn everything you want to know about this product to make an informed purchase

    General Description
    Belden 5100FL - 14 AWG stranded (19x27) bare copper conductors, PP insulation, cabled, Beldfoil® shield tape (foil side out) with drain wire, PVC jacket with ripcord. Sequential footage marking every two feet.

    Spec Sheet

    Belden 5320UL Spec SheetView Spec Sheet for Complete Details (PDF)

    Specifications
    Conductor Size AWG: 2-14AWG
    Conductor Material: Bare Copper
    Stranding: 19x27
    Outside Diameter: .222 in
    Jacket Color: Red
    Jacket Material: PVC (Polyvinyl Chloride)
    Weight: .038 lbs/ft



    More Information
    StockedYes
    Wire Size14 AWG
    # of Conductors2 Conductors
    O.D. (Inches)0.222 in
    ManufactureBelden
