Belden 3074F, 1PR, 18 AWG Stranded, (7x26), 120 Ohm, Twinaxial Cable, 600V

SKU BEL3074F
How will you purchase this wire?
11.770000 11.770000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 3074F, 1PR, 18 AWG Stranded, (7x26), 120 Ohm, Twinaxial Cable, 600V

Color Length (ft.) Price
Blue

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Blue Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

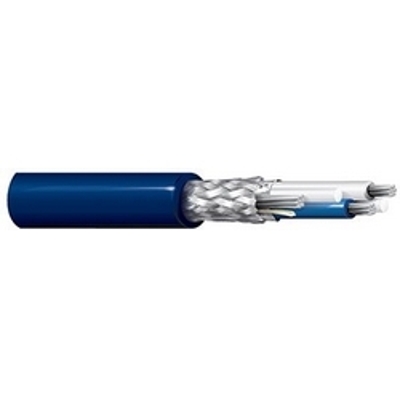

Belden 3074F - 18 AWG stranded (7x26) tinned copper conductors, flame-retardant polyolefin insulation, overall Beldfoil® (100% coverage) plus a tinned copper braid shield (55% coverage), sunlight resistant PVC jacket.

Spec Sheet

Belden 9116 Spec SheetView Spec Sheet for Complete Details

Belden 3074F - Specifications
Size:                         18 AWG
Pairs: 1
Stranding: 7x26
Conductor Material:  TC - Tinned Copper
Outside Diameter: .460 inches
Impedance: 120 OHM
Jacket Color: Blue, Cairo
Jacket Material: PVC - Polyvinyl Chloride
Shield Type: Tinned Copper Braid 55%
Weight: .118 lbs/ft
