$28.37 /ft.
Check Availability

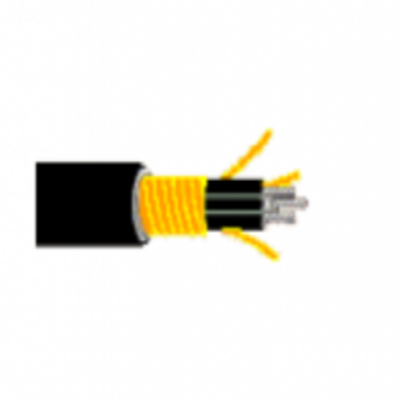

Belden 29531C 3/0-3C w/ 3 #8 Grounds 600V XLPE/PVC VFD Cable . Cut by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
General Description
Belden 29531C 3 - 3/0 AWG stranded (19x11) bare tinned copper circuit conductors plus (3) 8 AWG stranded (7x16) symmetrical bare copper ground wires, XLPE insulation, two spiral copper tape shields (100% Coverage), sun- and oil-resistant PVC jacket, Direct Burial.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Belden 29531C Specifications | |
| Conductor Size AWG: | 3/0 |
| Conductor Material: | Bare Copper |
| Outside Diameter: | 1.419 in |
| Jacket Color: | Black |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Wire Size | 3/0 AWG |
|---|---|
| O.D. (Inches) | 1.419 |
| Ampacity | 225 |
| Manufacture | Belden |
