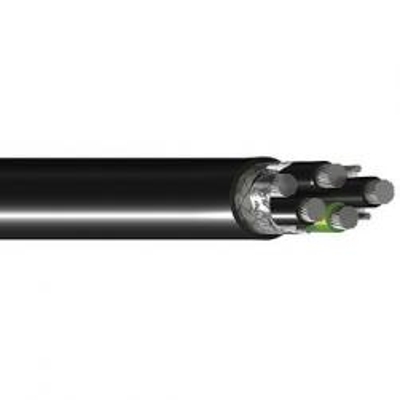

Belden 29507 2/3, plus Ground, Shielded VFD 1000V UL Flexible Motor Supply Cable

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 29507 2/3, plus Ground, Shielded VFD 1000V UL Flexible Motor Supply Cable

SKU
BEL29507-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 29507 4-cond. (3) stranded tinned copper circuit conductors plus (1)ground wire with PVC insulation, XLPE insulation, overall Duofoil® (100% cov.) plus a tinned copper braid shield (85% cov.), tinned copper sectioned drain wire, Sun-&oil-resistant PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 29507 Specifications
Conductor Size AWG: 2 AWG
Ground Wire Size AWG: 2 AWG
Conductors: 3 + 1 Ground
Conductor Material: Tinned Copper
Outside Diameter: 1.30in
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)
Weight: 1.77 lbs/ft



More Information
StockedYes
Wire Size2 AWG
O.D. (Inches)1.3
Ampacity 130
ManufactureBelden
Belden_5402FE (90.96 kB)
