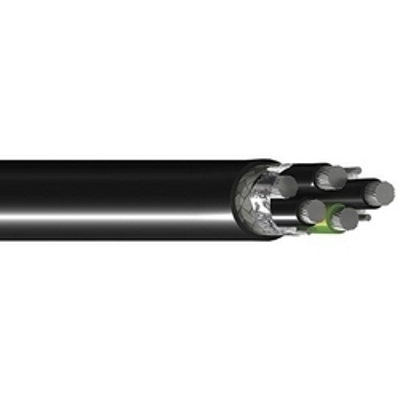

Belden 29502F 12/3, plus Ground, High Flex Shielded VFD 1000V UL Flexible Motor Supply Cable

SKU
BEL29502F-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 300% Ground Extra Flexible VFD, 3 Conductor 12AWG (7x24x34) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/12AWG TC Drain, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR

Spec Sheet

Belden 29502F Specifications
Conductor Size AWG:12 AWG
Ground Wire Size AWG:12 AWG
Conductors:3 + 1 Ground
Conductor Material:Tinned Copper
Outside Diameter:.661in
Jacket Color:Black
Jacket Material:TPE
Weight:.28 lbs/ft



More Information
Wire Size12 AWG
O.D. (Inches)0.66
Ampacity30
