$5.43 /ft.

In Stock

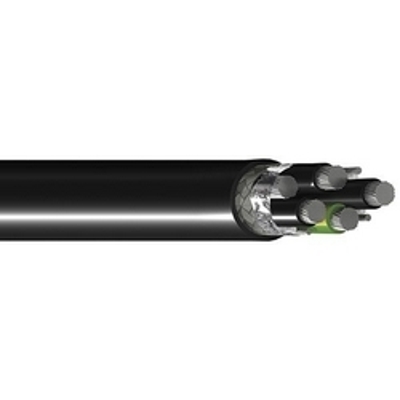

Belden 29501F 14/3, plus Ground, High Flex Shielded VFD 1000V UL Motor Supply Cable

Min: 10 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 29501F 14/3, plus Ground, High Flex Shielded VFD 1000V UL Motor Supply Cable

SKU
BEL29501F-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 300% Ground Extra Flexible VFD, 3 Conductor 14AWG (104x30) Tinned Copper, XLPE Insulation M4 Color Code+PVC Insulated Ground, Overall Beldfoil®+Tinned Copper Braid(85%) Shield w/14AWG Tinned Copper Drain, Black TPE Outer Jacket, 600/1000V TC-ER 90C Dry/Wet 1000V Flexible Motor Supply Cable 1000V WTTC 600V CIC TC SUN RES OIL RES II DIR BUR

Belden 29501F Specifications
Conductor Size AWG:14 AWG
Ground Wire Size AWG:14 AWG
Conductors:3 + 1 Ground
Conductor Material:Tinned Copper
Outside Diameter:.600in
Jacket Color:Black
Jacket Material:PVC (Polyvinyl Chloride)
Direct Burial:Yes
Weight Material:.216 lbs/ft



More Information
Wire Size14 AWG
O.D. (Inches)0.59
Ampacity25
ManufactureBelden
