Belden 29500 16/3, plus Ground, Shielded VFD 1000V UL Flexible Motor Supply Cable

SKU BEL29500

$

5.270000

5.270000

/ft
How will you purchase this wire?
5.270000 5.270000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 29500 16/3, plus Ground, Shielded VFD 1000V UL Flexible Motor Supply Cable

Color Length (ft.) Price
Black

Length (ft.)

$5.27
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$2,635.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    16 AWG

  • O.D. (Inches)

    0.53

  • Ampacity

    18

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description

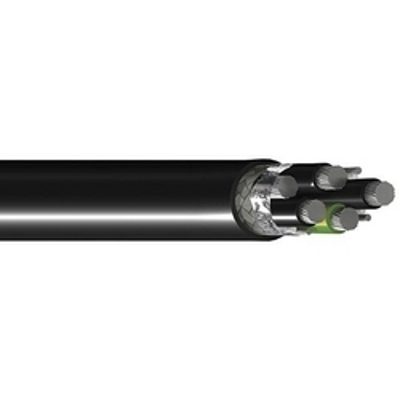

Belden 29500 4-cond. (3) stranded tinned copper circuit conductors, (1) ground wire with PVC insulation, XLPE insulation, Overall Duofoil® (100% coverage) plus a tinned copper braid shield (85% coverage), tinned copper drain wire, Oil & Sun-resistant PVC jacket, Direct Burial Rated.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 29500 Specifications
Conductor Size AWG: 16 AWG
Ground Wire Size AWG: 16 AWG
Conductors: 3 + 1 Ground
Conductor Material: Tinned Copper
Outside Diameter: .530in
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)
Direct Burial: Yes
Weight: .19 lbs/ft
