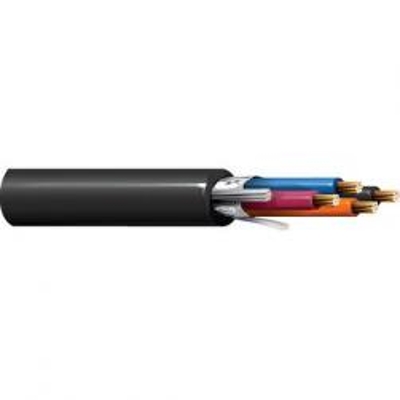

Belden 28601AS, 18 AWG, 8 Conductor, 600V Type TC-ER Cable, Direct Burial

SKU BEL28601AS

$

2.770000

2.770000

/ft
How will you purchase this wire?
2.770000 2.770000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 28601AS, 18 AWG, 8 Conductor, 600V Type TC-ER Cable, Direct Burial

Color Length (ft.) Price
Black

Length (ft.)

$2.77
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$1,385.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    8 Conductors

  • O.D. (Inches)

    0.392 in.

  • Direct Burial

    Yes

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description
Belden 28601AS - UL Type TC (1277) PVC-Nylon/PVC, 8 Conductor 18AWG (7x26) Bare Copper, PVC-NYL Insulation E2 Color Code, Overall Beldfoil® Shield, Black PVC Outer Jacket, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 28601AS - Specifications
Size: 18 AWG
Conductors: 8
Stranding: 7x26
Conductor Material: Bare Copper
Outside Diameter: .392 inches
Jacket Color: Black
Jacket Material: PVC - Polyvinyl Chloride
Weight: .116 lbs/ft
