Belden 27138A 10 AWG 2c Unshielded THHN 600V Type TC Cable

SKU BEL27138A

$

1.770000

1.770000

/ft
How will you purchase this wire?
1.770000 1.770000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 27138A 10 AWG 2c Unshielded THHN 600V Type TC Cable

Color Length (ft.) Price
Black

Length (ft.)

$1.77
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$885.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    10 AWG

  • # of Conductors

    2 Conductors

  • O.D. (Inches)

    0.260 x 0.426 in.

  • Temp. Rating

    90°C

  • Location Use

    Wet, Dry

  • Indoor/Outdoor Use

    Indoor, Outdoor

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

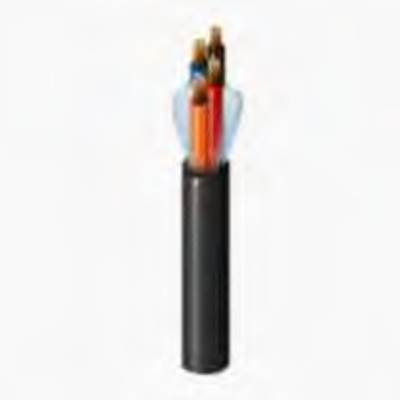

Belden 27138A  10 AWG multi-conductor stranded (7x18) bare copper conductors, PVC/Nylon insulation, PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 27138A Specifications
Conductor Size AWG: 10 AWG
Conductor Material: Bare Copper
Stranding: 7x18
Conductors: 2
Outside Diameter: 0.260 x 0.426 in.
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)
