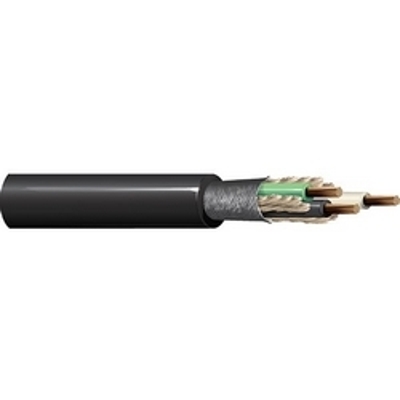

Belden 19352, 18/3C, Type SJT, Portable Cord 300V UL/CSA
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description
Belden 19352 - SJT PVC jacket, 300V, 60ºC, paper tape separator, smooth jacket, UL/CSA listed, international color code: light blue, brown, green/yellow.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Specifications | |
| Conductor Size AWG: | 18 AWG |
| Conductors: | 3 |
| Stranding: | 42x34 |
| Conductor Material: | BC - Bare Copper |
| Jacket Material: | PVC |
| Outside Diameter: | .328 in |
| Weight: | .018 lbs/ft |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 3 Conductors |
| Manufacture | Belden |
