Belden 1883A, 24 AWG, 1P, Overall Beldfoil Shielded, CMR, Audio Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

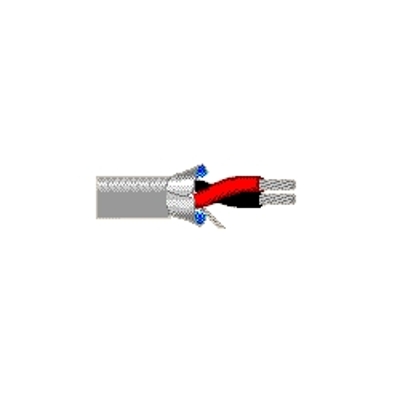

Belden 1883A - 24 AWG stranded (7x32) TC conductors, polypropylene insulation, twisted pair, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain wire, PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Specifications | |
| Conductor Size AWG: | 24 AWG |
| Pairs: | 1 |
| Stranding: | 7x32 |
| Conductor Material: | TC - Tinned Copper |
| Jacket Material: | PVC - Polyvinyl Chloride |
| Jacket Color: | Blue |
| Insulation Material: | PP - Polypropylene |
| Outside Diameter: | .123 in |
| Weight: | .012 lbs/ft |
| Stocked | Yes |
|---|---|
| # of Conductors | 2 Conductors |
| # of Pairs | 1 Pair |
| Manufacture | Belden |
| Shielded | Yes |
| Shield Type | Overall Foil Shield |
