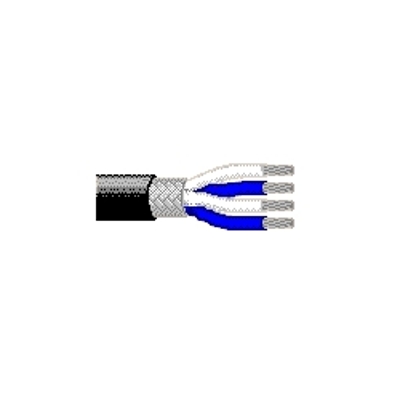

Belden 1804A - 28 AWG stranded (19x40) high-conductivity silver- plated copper alloy conductors, polypropylene insulation, tinned copper braid shield (78% coverage), PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Belden 1804A Specifications | |
| Conductor Size AWG: | 28 AWG |
| Conductors: | 4 |
| Stranding: | 19x40 |
| Conductor Material: | High Conductivity SPCA - Silver Plated Copper Alloy |
| Outside Diameter: | 0.115 in. |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Weight: | 0.009 in. |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| # of Conductors | 4 Conductors |
| Manufacture | Belden |
