Belden 1694F, RG-6/U, 19AWG, Riser, Low Loss Serial Digital Coax Cable, 75 Ohm
Product Details
Learn everything you want to know about this product to make an informed purchaseGeneral Description

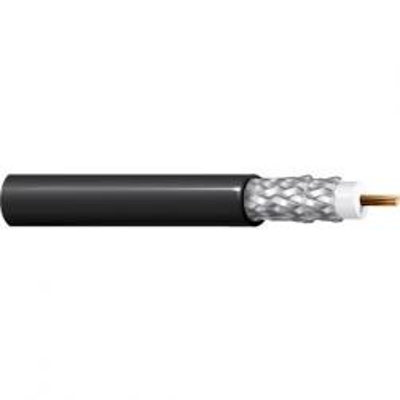

Belden 1694F- 19 AWG stranded (7x27) bare copper conductor, gas-injected foam HDPE insulation, double tinned copper braid shield (98% coverage), PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 1694F - Specifications | |
| Size: | 19 AWG |
| Stranding: | 7x27 |
| Conductors: | 1 |
| Conductor Material: | BC - Bare Copper |
| Outside Diameter: | .276 inches |
| Impedance: | 75 OHM |
| Jacket Color: | Black |
| Jacket Material: | PVC - Polyvinyl Chloride |
| Shield Type: | Special Shield Construction |
| Stocked | Yes |
|---|---|
| Wire Size | 30 AWG |
| Manufacture | Belden |
