Belden 129463 Twinax - Blue Hose Cable, 20 AWG, 1 Pair, PVC Jacket, Interlocked Armor

SKU BEL129463
How will you purchase this wire?
4.220000 4.220000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 129463 Twinax - Blue Hose Cable, 20 AWG, 1 Pair, PVC Jacket, Interlocked Armor

Color Length (ft.) Price
Blue

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Blue Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • # of Conductors

    2 Conductors

  • # of Pairs

    1 Pair

  • O.D. (Inches)

    0.553

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

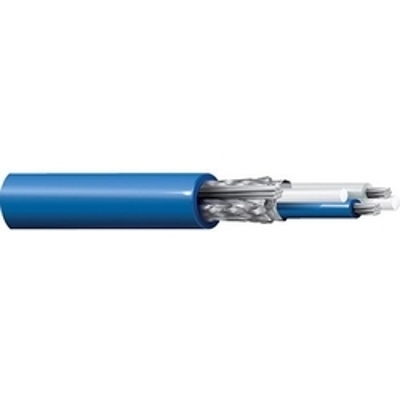

Belden 129463 - 20 AWG stranded (7x28) tinned copper conductors, polyethylene insulation, overall Beldfoil® (100% coverage) plus a 55% tinned copper braid shield (55% coverage), PVC inner jacket, aluminum interlocked armor, sunlight-resistant PVC outer jacket.

Spec Sheet

Belden 8770 Spec SheetView Spec Sheet for Complete Details

Belden 129463 - Specifications
Size: 20 AWG
Conductors: 2
Conductor Material: Tinned Copper
Outside Diameter: .553 inches
Shield Type: Both, Braid Over Foil
Jacket Color: Blue
Jacket Material: PVC (Polyvinyl Chloride)
