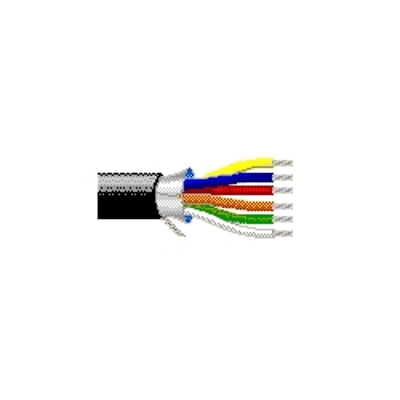

Belden 1212A, 26AWG, 6c, Computers, Instrumentation & Medical Elec Interconnect Cable

SKU BEL1212A

$

8.280000

8.280000

/ft
How will you purchase this wire?
8.280000 8.280000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

.... ....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 1212A, 26AWG, 6c, Computers, Instrumentation & Medical Elec Interconnect Cable

Color Length (ft.) Price
Black

Length (ft.)

$8.28
add Add a length
White

Length (ft.)

$8.28
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$4,140.00
White Length 500 ft.
$4,140.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    30 AWG

  • # of Conductors

    6 Conductors

  • O.D. (Inches)

    0.220

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description
Belden 1212A - 26 AWG stranded (7x34) TC Conductors, PVC insulation, Duofoil® shield (100% coverage), 26 AWG stranded TC drain wire, PVC jacket.

Spec Sheet

Belden 9116 Spec SheetView Spec Sheet for Complete Details

Belden 1212A - Specifications
Size:                         26 AWG
Conductors: 6
Stranding: 7x34
Conductor Material:  TC - Tinned Copper
Outside Diameter: .220 inches
Jacket Color: Black
Jacket Material: PVC - Polyvinyl Chloride
Shield Type: Foil Shielded - Alum/Mylar 100%
