Belden 1189A, RG-6, 18AWG Quad Shield CATV Coaxial Cable

SKU BEL1189A
How will you purchase this wire?
0.360000 0.360000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 1189A, RG-6, 18AWG Quad Shield CATV Coaxial Cable

Color Length (ft.) Price
Black

Length (ft.)

add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • Manufacture

    Belden

  • Applications

    CATV & Satelite Coax

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

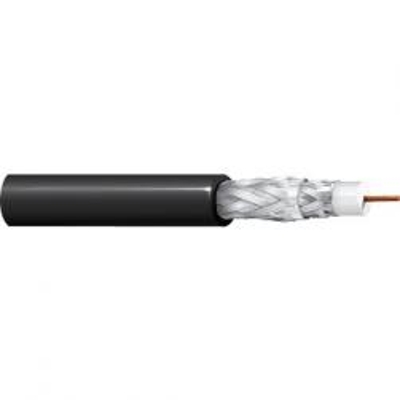

Belden 1189A - 18 AWG solid .040" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duobond® IV quad shield (60% and 40% coverage), PVC jacket.

Spec Sheet

Belden 1189A Spec SheetView Spec Sheet for Complete Details

Belden 1189A - Specifications
Size:                         18 AWG
Conductors: 1
Conductor Material:  BCCS - Bare Copper-Covered Steel
Outside Diameter: .294 inches
Impedance: 75 OHM
Jacket Color: Black
Jacket Material: PVC - Polyvinyl Chloride
Shield Type: Quad - Foil + Aluminum Braid 60% + Foil + Aluminum Braid 40%
See Less
