Belden 1151A, RG-59, 20AWG CATV Coax Cable

SKU BEL1151A-FT
truck FREE SHIPPING ON ORDERS OVER $1000

Total Items:

Total Price:
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • O.D. (Inches)

    0.236

  • Manufacture

    Belden

  • Applications

    CATV & Satelite Coax

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

General Description

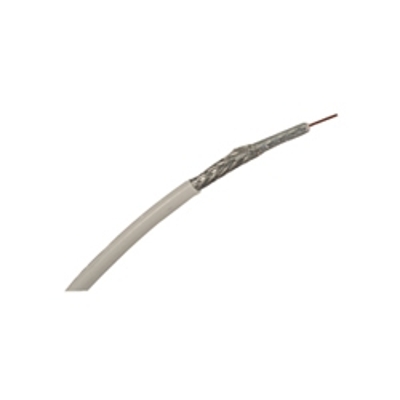

Belden 1151A - Series 59, 20 AWG solid .032" bare copper-covered steel conductor, plenum, foam FEP insulation, Duofoil® (100% coverage) + TC braid shield (55% and 50% coverage),  Sweep tested 5 MHz to 400 MHz., FEP jacket.

Spec Sheet

Belden 9841 Spec SheetView Spec Sheet for Complete Details

Belden 1151A - Specifications
Size:                                              20 AWG
Conductors: 1
Conductor Material:                      BCCS - Bare Copper Covered Steel
Outside Diameter: .236 inches
Impedance: 75 OHM
Jacket Color: Beige / Snow
Jacket Material: FEP - Fluorinated Ethylene Propylene
Shield Type: 2 Foil + 2 Aluminum Braids 65% & 45%
