Belden 1098A 16 AWG 8 Triads Shielded Tray Cable, 600V

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 1098A 16 AWG 8 Triads Shielded Tray Cable, 600V

SKU
BEL1098A-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description

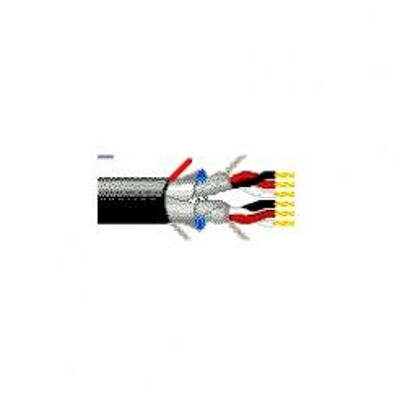

Belden 1098A 16 AWG triads stranded (7x24) bare copper conductors, twisted triads, individually shielded plus an overall Beldfoil shield (100% coverage), PVC/Nylon insulation, PVC jacket, Direct Burial.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 1098A Specifications
Conductor Size AWG: 16AWG
Conductor Material: Bare Copper
Outside Diameter: .872in
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)
Direct Burial: Yes



More Information
StockedYes
Wire Size16 AWG
# of Conductors24 Conductors
O.D. (Inches)0.872
ManufactureBelden
# of Triads8 Triads
