Belden 1078A Mulit-Conductor Power Limited Tray Cable, PLTC/ITC 300V. Cut by the foot.
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
General Description

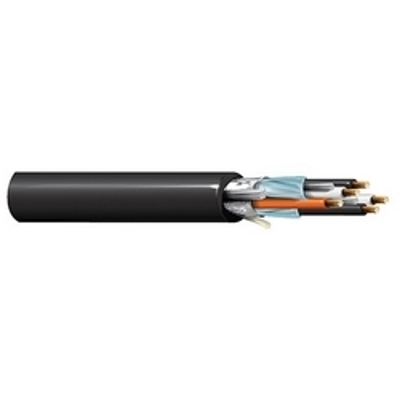

Belden 1078A 20 AWG pairs stranded (7x28) bare copper conductors, twisted pairs, Direct Burial, PVC insulation, individually shielded plus an overall Beldfoil shield (100% coverage), PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details (PDF)
| Belden 1078A Specifications | |
| Conductor Size AWG: | 20AWG + 22AWG |
| Conductor Material: | Bare Copper |
| Outside Diameter: | .637in |
| Jacket Color: | Black |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Stocked | Yes |
|---|---|
| Wire Size | 20 AWG |
| # of Conductors | 24 Conductors |
| # of Pairs | 12 Pair |
| O.D. (Inches) | 0.637 |
| Ampacity | 3 |
| Sunlight Resistant | Yes |
| Manufacture | Belden |
