$3.47 /ft.

In Stock

Belden 1077A Mulit-Conductor Power Limited Tray Cable, PLTC/ITC 300V. Cut by the foot.

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

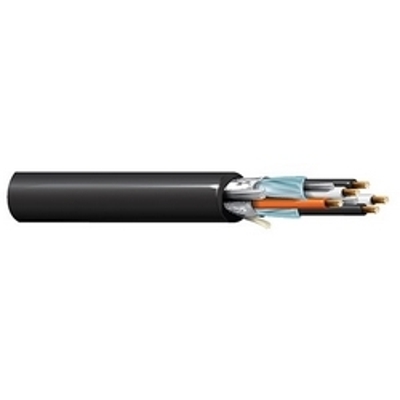

Belden 1077A 20 AWG 8 Pair Multi-Conductor Power Limited Tray Cable, PLTC, 300V

SKU
BEL1077A-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 1077A 20 AWG pairs stranded (7x28) bare copper conductors, Direct Burial, twisted pairs, PVC insulation, individually shielded plus an overall Beldfoil shield (100% coverage), PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 1077A Specifications
Conductor Size AWG:20AWG + 22AWG
Conductor Material:Bare Copper
Outside Diameter:.514in
Jacket Color:Black
Jacket Material:PVC (Polyvinyl Chloride)



More Information
Wire Size20 AWG
# of Conductors16 Conductors
# of Pairs8 Pair
O.D. (Inches)0.514
Sunlight ResistantYes
ManufactureBelden
