Belden 1061A 20 AWG 36 Pair Multi-Conductor Power Limited Tray Cable, PLTC, 300V
Product Details
Learn everything you want to know about this product to make an informed purchaseCut to length - sold by the foot. Enter the desired footage in the QTY box.
General Description

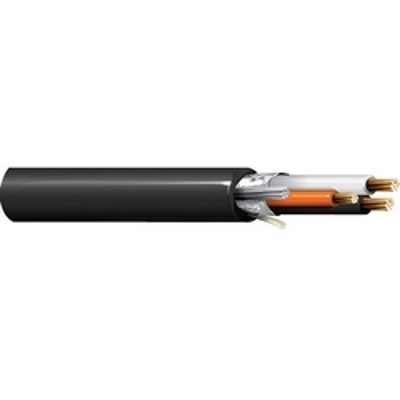

Belden 1061A Thirty Six 20 AWG pairs stranded (7x28) bare copper conductors plus one 22 AWG stranded (7x30) bare copper conductor, twisted pairs, PVC insulation, overall Beldfoil® shield (100% coverage), PVC jacket.
Spec Sheet
View Spec Sheet for Complete Details
| Belden 1061A Specifications | |
| Conductor Size AWG: | 20AWG + 22AWG |
| Conductor Material: | Bare Copper |
| Outside Diameter: | 0.960 Inches |
| Jacket Color: | Black |
| Jacket Material: | PVC (Polyvinyl Chloride) |
| Stocked | Yes |
|---|---|
| Wire Size | 20 AWG |
| # of Conductors | 72 Conductors |
| # of Pairs | 36 Pair |
| O.D. (Inches) | 0.96 |
| Ampacity | 3 |
| Sunlight Resistant | Yes |
| Manufacture | Belden |
