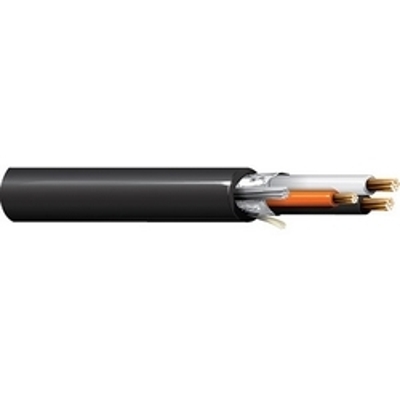

Belden 1059A 20 AWG 16 Pair Multi-Conductor Power Limited Tray Cable, PLTC, 300V

SKU BEL1059A

$

8.180000

8.180000

/ft
How will you purchase this wire?
8.180000 8.180000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 1059A 20 AWG 16 Pair Multi-Conductor Power Limited Tray Cable, PLTC, 300V

Color Length (ft.) Price
Black

Length (ft.)

$8.18
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$4,090.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    20 AWG

  • # of Conductors

    32 Conductors

  • # of Pairs

    16 Pair

  • O.D. (Inches)

    0.649

  • Ampacity

    3

  • Sunlight Resistant

    Yes

  • Manufacture

    Belden

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 1059A 20 AWG, 16 Pairs stranded (7x28) bare copper conductors, twisted pairs, PVC insulation, overall Beldfoil shield (100% coverage), PVC jacket. 1 Communication 22 AWG (7x30) conductor.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details

Belden 1059A Specifications
Conductor Size AWG: 20AWG + 22AWG
Conductor Material: Bare Copper
Outside Diameter: 0.649 Inches
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)
