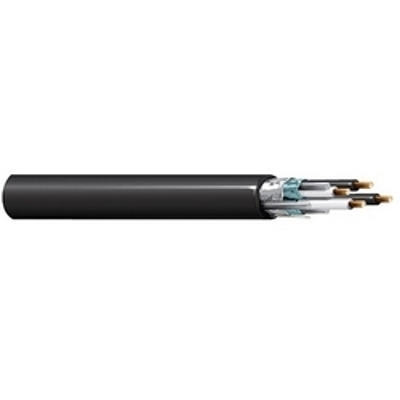

Belden 1054A 18 AWG 36 Pair Beldfoil Individually Shielded Tray Cable 600V

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 1054A 18 AWG 36 Pair Beldfoil Individually Shielded Tray Cable 600V

SKU
BEL1054A-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

General Description
Belden 1054A 18 AWG pairs stranded (7x26) bare copper conductors, twisted pairs, PVC/Nylon insulation, individually shielded plus an overall Beldfoil shield (100% coverage), PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 1054A Specifications
Conductor Size AWG:18 AWG
Conductor Material:Bare Copper
Stranding:7x26
Outside Diameter:1.299 in.
Jacket Color:Black
Jacket Material:PVC (Polyvinyl Chloride)
More Information
Wire Size18 AWG
# of Conductors72 Conductors
# of Pairs36 Pair
O.D. (Inches)1.299 in.
ManufactureBelden
ShieldedYes
