$5.60 /ft.

In Stock

Belden 1037A Multi-Conductor Tray Cable 600V. Cut by the foot.

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Belden 1037A 16 AWG 3 Pair Individually Shielded & Overall Foil Shield Tray Cable 600V

SKU
BEL1037A-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description

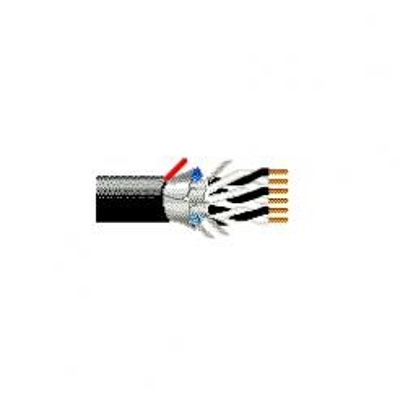

Belden 1037A 16 AWG pairs stranded (7x24) bare copper conductors, twisted pairs, PVC/Nylon insulation, individually shielded plus an overall Beldfoil shield (100% coverage), PVC jacket, Direct Burial rated.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 1037A Specifications
Conductor Size AWG: 16 AWG
Conductor Material: Bare Copper
Outside Diameter: .504 in.
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)
More Information
StockedYes
Wire Size16 AWG
# of Conductors6 Conductors
# of Pairs3 Pair
O.D. (Inches)0.504
ManufactureBelden
ShieldedYes
Belden_5402FE (90.96 kB)
