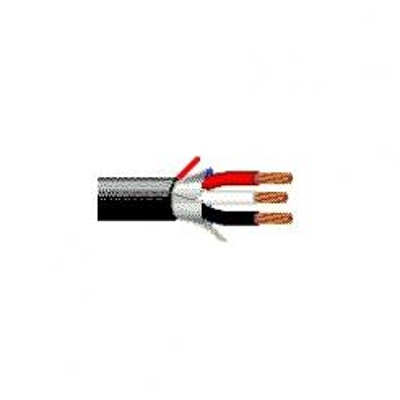

Belden 1036A 18 AWG 1 Triad Shielded Power-Limited Tray Cable, 300V

SKU BEL1036A

$

1.500000

1.500000

/ft
How will you purchase this wire?
1.500000 1.500000
truck FREE SHIPPING ON ORDERS OVER $1000
MIN: 1 FT. | MAX: 10000 FT. 1 10000 tooltip To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.

Please Select Color(s)

Multiple colors can be selected

....
Quantity

Select your preferred quantity for each color below. Add additional colors and lengths as needed.

Belden 1036A 18 AWG 1 Triad Shielded Power-Limited Tray Cable, 300V

Color Length (ft.) Price
Black

Length (ft.)

$1.50
add Add a length
Grouped product items
Color Length (ft.)
Black Length 500 ft.
$750.00
truck FREE SHIPPING ON ORDERS OVER $1000
Product Details

Learn everything you want to know about this product to make an informed purchase

Specifications
  • Wire Size

    18 AWG

  • # of Conductors

    3 Conductors

  • O.D. (Inches)

    0.236

  • Manufacture

    Belden

  • # of Triads

    1 Triad

Data provided on this page is subject to change based on different manufacturers variances.
See Less
More information

Cut to length - sold by the foot. Enter the desired footage in the QTY box.

General Description
Belden 1036A 18 AWG triads stranded (7x26) bare copper conductors, twisted triads, PVC insulation, overall Beldfoil shield (100% coverage), PVC jacket.

Spec Sheet

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Belden 1036A Specifications
Conductor Size AWG: 18 AWG
Conductor Material: Bare Copper
Outside Diameter: .236 in.
Jacket Color: Black
Jacket Material: PVC (Polyvinyl Chloride)
