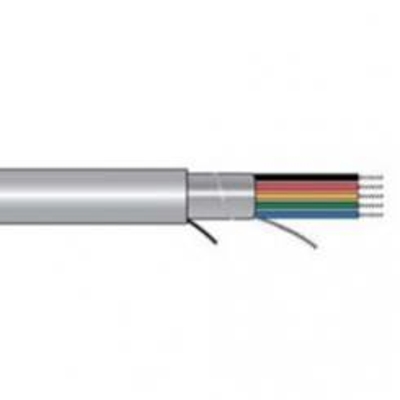

Alpha Wire 5199/20C, 22/20C Xtra-Guard 1® High Performance Multiconductor Shielded Cable
Product Details
Learn everything you want to know about this product to make an informed purchaseAlpha Wire 5199/20C, 22/20C Xtra-Guard 1® High Performance Shielded Cable
Cut to length - Sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.
Color:
Gray
Applications:
Alpha Wire Xtra-Guard 1® is a high performance PVC cable for general-purpose applications
Features:
High-performance cable for general-purpose applications
A unique, premium-grade PVC insulation and jacket for easier routing in small spaces
Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
Designed for use in ambient temperatures up to 105 ° C
Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
Stranded tinned copper conductors
Aluminum/polyester foil shield, with 25% overlap and foil facing inward
Provides exceptional protection contre EMI interference when Supra-Shield is specified
Tinned copper drain wire sized the same as cable conductors
UL SUN RES
Nylon ripcord
Premium PVC jacket
Compliances:
UL AWM 2464
VW-1 UL Flame Test
CSA CMG FT4
REACH Compliant
RoHS Compliant
Spec Sheet:
View Spec Sheet for Complete Details (PDF)
Specifications:
Size: 22 AWG
Number of Conductors: 20
Conductor Strand: 7/30
Insulation Thickness: 0.016 inches
Jacket Thickness: 0.032 inches
Outside Diameter: 0.335 inches
Voltage: 300V
Stocked | Yes |
---|---|
Wire Size | 22 AWG |
# of Conductors | 20 Conductors |
O.D. (Inches) | 0.335 in. |
