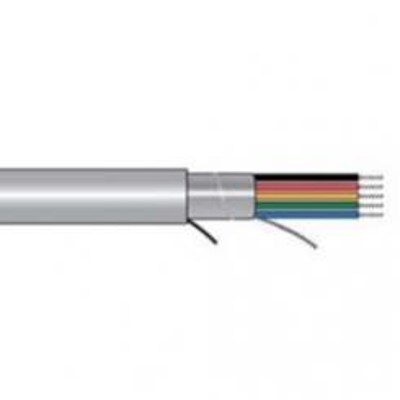

Alpha Wire 5010C, 22/10C Xtra-Guard 1® High Performance Multiconductor Unshielded Cable

Min: 25 ft., Max: 1000 ft. To order multiple lengths, simply enter the desired footage into the quantity fields. Each length will be delivered on its own spool.
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Qty:
Add a length

 Free Shipping on all orders over $1000

Alpha 5010C, 22/10C Xtra-Guard 1 High Performance Unshielded Cable

SKU
AW5010C-FT

Product Details

Learn everything you want to know about this product to make an informed purchase

Alpha Wire 5010C, 22/10C Xtra-Guard 1® High Performance Unshielded Cable

Cut to length - Sold by the foot. Enter the desired footage in the QTY box.
Minimum 50' to maximum 1000'. Please call for longer put ups.

Color:
Gray

Applications:
Alpha Wire Xtra-Guard 1® is a high performance PVC cable for general-purpose applications

Features:
High-performance cable for general-purpose applications
A unique, premium-grade PVC insulation and jacket for easier routing in small spaces
Provides resistance to oils per UL Oil Res I (60C OIL RES) and Class 43
Designed for use in ambient temperatures up to 105 ° C
Temperature range of -35 ° C to + 105 ° C (SR-PVC) and -30 ° C to + 105 ° C (PVC)
Stranded tinned copper conductors
Tinned copper drain wire sized the same as cable conductors
UL SUN RES
Nylon ripcord
Premium PVC jacket

Compliances:
UL AWM 2464
VW-1 UL Flame Test
CSA CMG FT4
REACH Compliant
RoHS Compliant

Spec Sheet:

Belden 9451 Spec SheetView Spec Sheet for Complete Details (PDF)

Specifications:

Size: 22 AWG
Number of Conductors: 10
Conductor Strand: 7/30
Insulation Thickness: 0.010 inches
Jacket Thickness: 0.032 inches
Outside Diameter: 0.270 inches
Voltage: 300V



More Information
StockedYes
Wire Size22 AWG
# of Conductors10 Conductors
O.D. (Inches)0.268 in.
