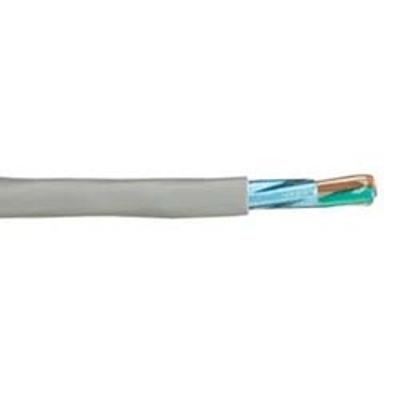

Alpha M4668, 20/15C Communication and Control Cable, Foil Shield, 300V

Alpha M4668, 20 AWG 15 Conductors, Communication and Control Cable, Foil Shield, 300V

Color Code:
Black, Red, White, Green, Orange, Blue, Brown, Yellow, Violet, Slate, Pink, Tan, Red/Green, Red/Yellow, Red/Black

Applications:
Audio systems: speakers, microphones, intercoms
Broadcast and studio
Data transmission: RS-232, 422, 485
CAD/CAM
Computer peripherals
Business machines
Security systems: alarms, cameras, sensors
Control systems
Instrumentation systems
Point-of-sale systems
Banking systems

Features:
Stranded tinned copper conductors
PVC Insulation
Aluminum/polyester foil shield, 25% overlap min.
Foil facing inward
Stranded tinned copper drain wire equal in size to conductor
Slate PVC jacket

Compliances:
CA Prop 65
Reach
CE
UL AWM 2464
UL CMG
CSA CMG FT4


Spec Sheet:

View Spec Sheet for Complete Details (PDF)

Specifications:
Size: 20 AWG
Number of Conductors: 15
Conductor Strand: 7/28
Outside Diameter: 0.393 inches
Insulation Thickness: 0.016 inches
Weight: 0.107 lbs/ft
Voltage: 300 V
